The Supermicro SYS-112D-36C-FN3P is aimed at a specific kind of buyer: someone who wants a short-depth 1U server, front-access I/O, and high-speed networking without moving to a full-depth rack platform. It sits close to Supermicro’s related Xeon 6 SoC edge systems, but this version centers on a 36-core Intel Xeon 6 SoC 6553P-B and two QSFP28 100GbE ports.
That combination makes the system more interesting than a basic compact server. It is not just a small box with a server CPU. It is a dense front-I/O platform for edge racks, lab cabinets, service-provider spaces, and other installations where physical depth and cabling direction matter.
Front I/O and Chassis Layout

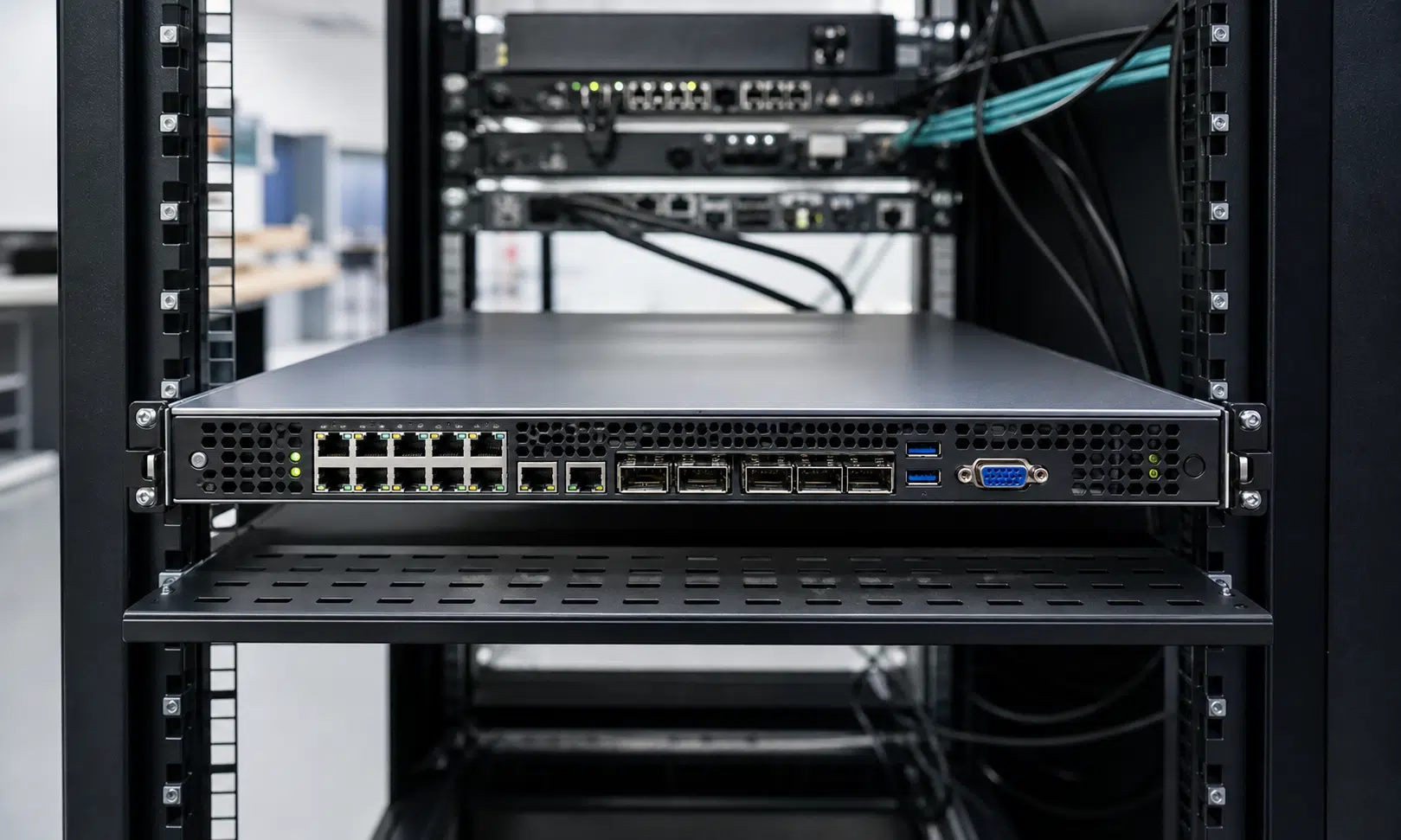

From the front, the SYS-112D-36C-FN3P follows the front-service pattern that is common in edge-oriented 1U systems. The main I/O cluster is on the front face, with networking, local access ports, status controls, and expansion positioned for racks where reaching the rear of the system is inconvenient.
The system is listed as a 1U rackmount server with a 15.7-inch, or 399mm, chassis depth. That matters for buyers working with wall cabinets, telecom-style racks, or space-constrained lab environments where a conventional deep 1U server may be awkward or impossible to install.
On the front panel, the server includes one RJ45 1GbE LAN port using Intel i210-IT, with IPMI shared on LAN port 1. That gives the system a familiar management and basic network path alongside its faster onboard ports.
Two USB 3.0 Type-A ports are also available on the front. In practical terms, front USB is helpful for local installation media, recovery work, and hands-on setup when the system is being commissioned before remote management is fully configured.
For local console work, Supermicro includes a VGA port on the front panel. It is not exciting, but it is still useful in lab racks and deployment situations where a crash cart or local display is faster than waiting on management access.
Supermicro SYS-112D-36C-FN3P 1U Edge Server
This is the exact short-depth 1U Supermicro system discussed in the review, with front I/O and onboard dual QSFP28 100GbE. Confirm configuration, power option, memory, and storage bundle before ordering.
As an Amazon Associate I earn from qualifying purchases.
Dual 100GbE Is the Main Buyer Hook
The standout feature is networking. Instead of treating high-speed Ethernet as an add-in requirement, the SYS-112D-36C-FN3P has two QSFP28 100GbE LAN ports tied to the Intel SoC. For buyers comparing this class of system with other front-I/O Supermicro models, the practical decision often comes down to port shape and network design: fewer, faster 100GbE links here versus a larger number of lower-speed ports on some alternatives.
| Feature | SYS-112D-36C-FN3P |
|---|---|
| Form factor | 1U short-depth front-I/O server |
| Processor | Intel Xeon 6 SoC 6553P-B |
| Core count | 36 cores |
| Primary networking | 2x QSFP28 100GbE |
| Management/basic LAN | 1x RJ45 1GbE with Intel i210-IT, IPMI shared on LAN port 1 |
| Front USB | 2x USB 3.0 Type-A |
| Video | 1x VGA |
| Depth | 15.7 inches / 399mm |
That layout suits environments where uplink bandwidth is more important than having many individual 25GbE server-facing ports. It also reduces the need to consume the PCIe expansion area just to add a high-speed NIC.
Rear Power and Cooling
The rear of the chassis has a different job. While the front handles service access and networking, the back side is used for airflow and power. The system uses rear-mounted redundant power supplies, which fits racks where AC power is already presented at the rear.
The rear side also contains the fan area. The source review describes a row of small fan modules there, but without treating every service detail as a broader maintenance claim, the important buyer takeaway is simpler: this design separates front cabling from rear cooling and power.
Who This Server Is For
The SYS-112D-36C-FN3P makes the most sense for buyers who need compact physical depth and onboard 100GbE more than maximum storage frontage or a traditional data-center chassis layout. It is a stronger fit for edge compute, network appliances, compact virtualization nodes, and lab or service-provider deployments where front I/O is a requirement rather than a preference.
It is less likely to be the first choice for buyers who want many hot-swap front drive bays, a quieter office-friendly system, or a standard deep 1U server with rear I/O and conventional data-center cabling.
Verdict
The Supermicro SYS-112D-36C-FN3P is a focused system, not a general-purpose 1U server trying to satisfy every rack design. Its appeal comes from the combination of a 36-core Intel Xeon 6 SoC, short-depth 1U chassis, front-access I/O, redundant rear power, and two onboard QSFP28 100GbE ports.
For buyers already planning around 100GbE at the edge, that is the point. This platform reduces the number of add-in decisions and keeps the system compact, while still offering enough CPU density to handle serious network-adjacent workloads.
